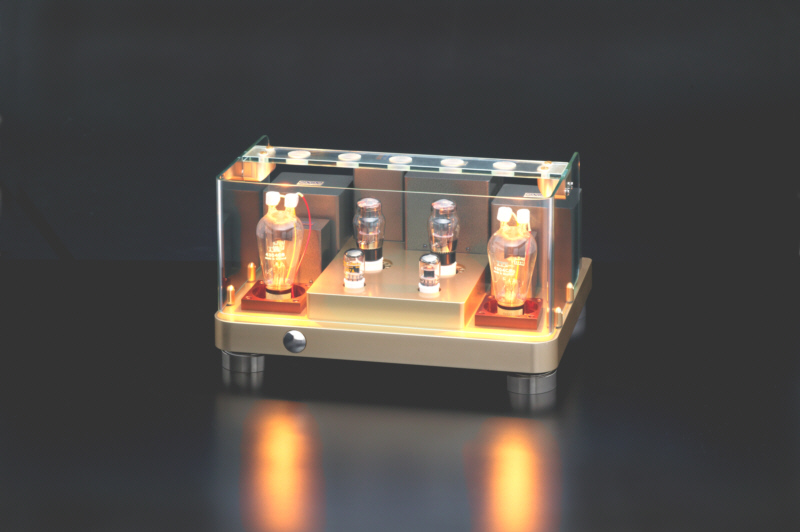

Products: Single-ended Directly Heated Triode Power Amplifiers: HE-4304


Model : HE-4304

A Class Single Ended
  15W+15W Power Amplifier
Taking full advantage of the latest 20-bit digital technology requires an amplifier subtle enough to reproduce the rustle of the breeze passing through the woods. All over the world, serious listeners are coming to recognize that single-ended amplifiers with directly heated triodes capture the subtle expressions that are the soul of music. The remarkable low-level articulation, portrayal of dynamic nuances, and fine resolution of textures communicated by single-ended triode amplifiers truly makes the magic of music come alive in the listening room.

One glance at the HE-4304 and you'll realize that this is no ordinary single-ended triode amplifier. We designed this unit choosing the finest vacuum tubes ever produced without regard to current fashion and marketing trends as a statement of the ultimate possibilities of the technology. For example, our Western Electric 437A input tube is unfamiliar to most audiophiles but experts recognize this remarkable small signal triode as on of the highest achievements of the tube maker's craft. The 437A was designed in the 1950s for critical telephone system applications requiring revolutionary vacuum-tube performance. This tube offers an unmatched technical figure of merit, exceptionally low noise, and bulletproof reliability, but we use it because we are sure that your ears will appreciate the special quality the 437A brings to your music room or home theater.

The distinctive ITT 4304CB output tube is a European version of the Western Electric 304, a directly-heated triode which played a role in the early days of Trans-Atlantic short-wave radio communication. Thanks to our novel IITC interstage transformer circuit, we are able to recruit this outstanding commercial-grade tube for the service of music, Although we certainly appreciate the romance of the older days, we selected the 4304 for its exceptional qualities for today's listener.

Power output is a substantial 15 watts with a full and rich presentation that really makes people enjoy music.

Specification
Power Tube 4304
Effective Power output 15 watts per channel
Frequency range 50Hz-60KHz
Input sensitivity 1.0Vrms
Input impedance 100k ohms
S/N ratio 80dB
Power consumption 360 watts
Power supply 100,110,120,220,230,240
VAC 50-60Hz
(selected when shipped)
Load impedance 8(4/16) ohms
External dimensions 450Wx360Dx260H(mm)
Weight 30kg

Features

-IITC(Inverted Interstage Transformer Coupling) circuit with special DC
magnetization cancellation technique provides excellent performance
in lower register.

-All direct-coupled circuitry. We avoid coupling capacitors to ensure
maximum purity of reproduction.

-The ITT4304 filament are supplied from a well filtered DC source to
minimize hum and noise.

-The chassis is milled out 40mm thick block of aerospace-grade
aluminum and finished in a lustrous champagne-gold.

-The specially-designed transformers used in WAVAC Audio Lab. amplifiers are
custom-would to the highest standards by TANGO, the most
renowned transformer manufacture in Japan.

-All tube sockets are machined out of solid Teflon stock and
assembled with heavy gold plated phosphor bronze contacts.
Elastomeric anti-vibration mounting arrangement is provided to isolate
the tubes from environmental vibrations.

-Binding posts capable of accepting audiophile speaker cabled are
provided in an easily accessible position atop the chassis.

-Reduction of noise caused by electric power supply is reduced by
power line input filter.

-For cooling and protection of the components, the bottom plate of the
amplifier is perforated in a basket weave pattern.. we chose a
traditional graphic design pattern from the ancient ages of Japan
called Ajiro-Kumi, to add aesthetic purpose.

-An attractive laboratory glass canopy suspended on elastomer
supports is provided to protect then output tubes.

-The input sensitivity of the HE-4304 is on the order of 100mV. High
sensitivity allows for use of purist passive attenuators such as our ATT-S.

-A highly-filtered DC filament supply reduces hum and noise.

-The input tube is the Western Electric 437A, an outstanding low-noise
triode designed in the 1950s for critical telecommunication applications.

-A 6L6GC triode driver stage allows high power and linearity.

-Because our supplies of the specialized vacuum tube used this
amplifier are limited, we must limit production of the HE-4304 to
30 units in order to meet the service requirements of owners, 70 pairs
of this tube are now in stock with us for this purpose.
